TubiGuard

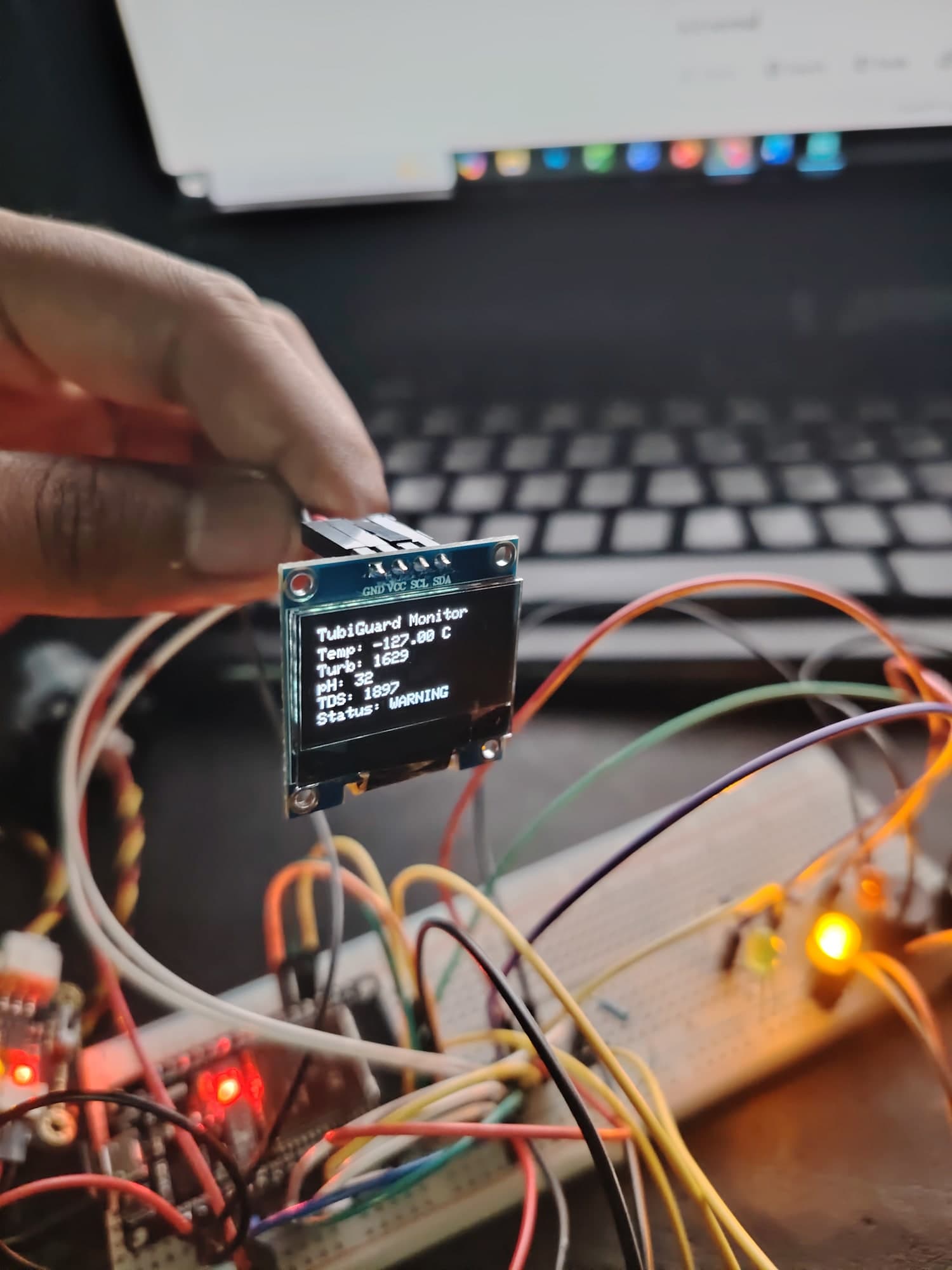

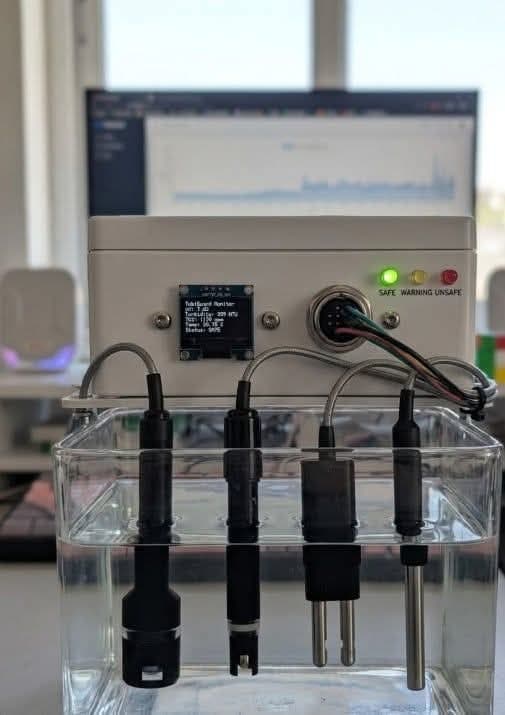

TubiGuard is a water-quality monitoring prototype. Four probes sit in the water; the readings arrive on a small display built into the enclosure, alongside a three-state indicator that shows SAFE, WARNING or UNSAFE at a glance.

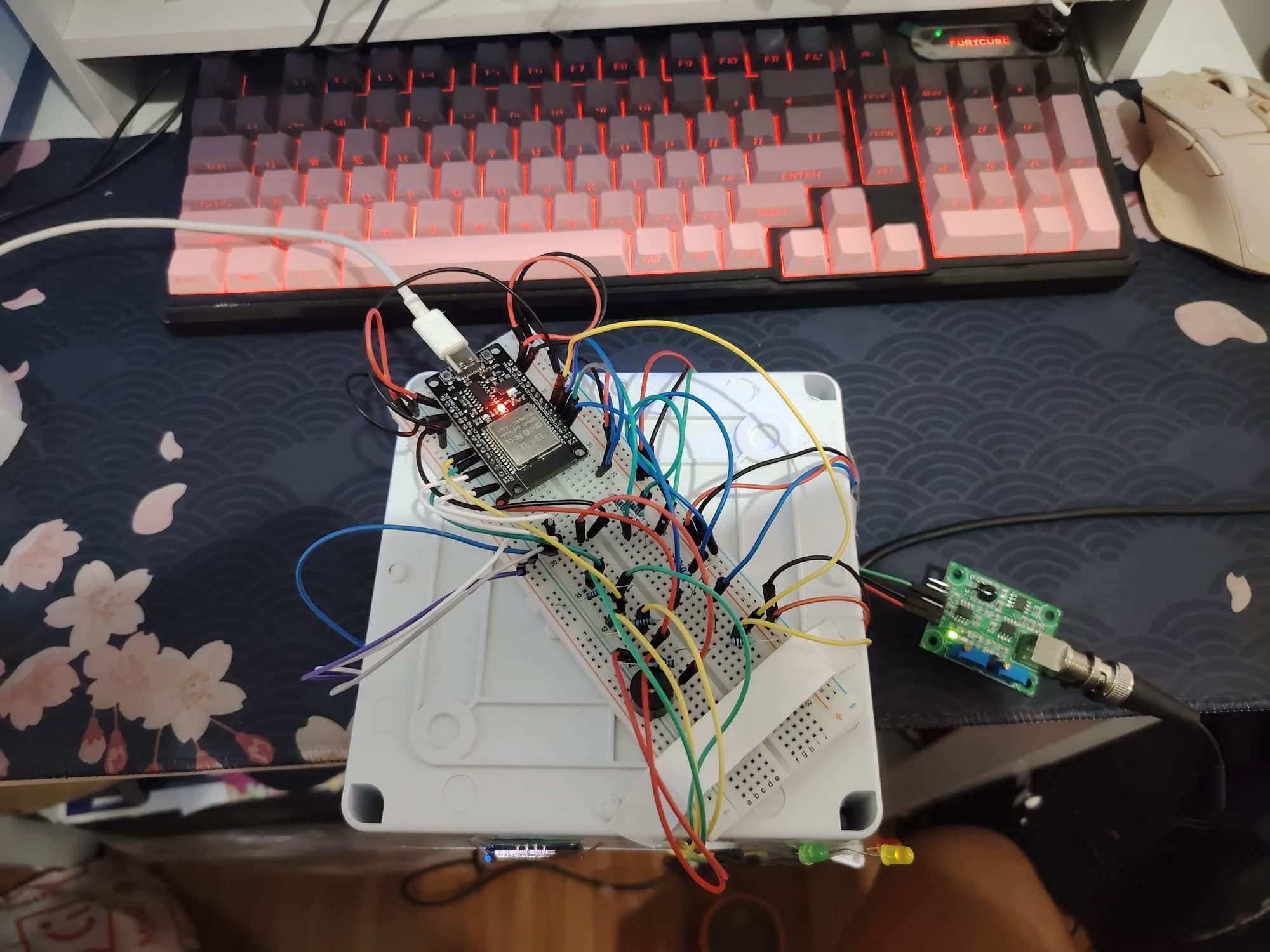

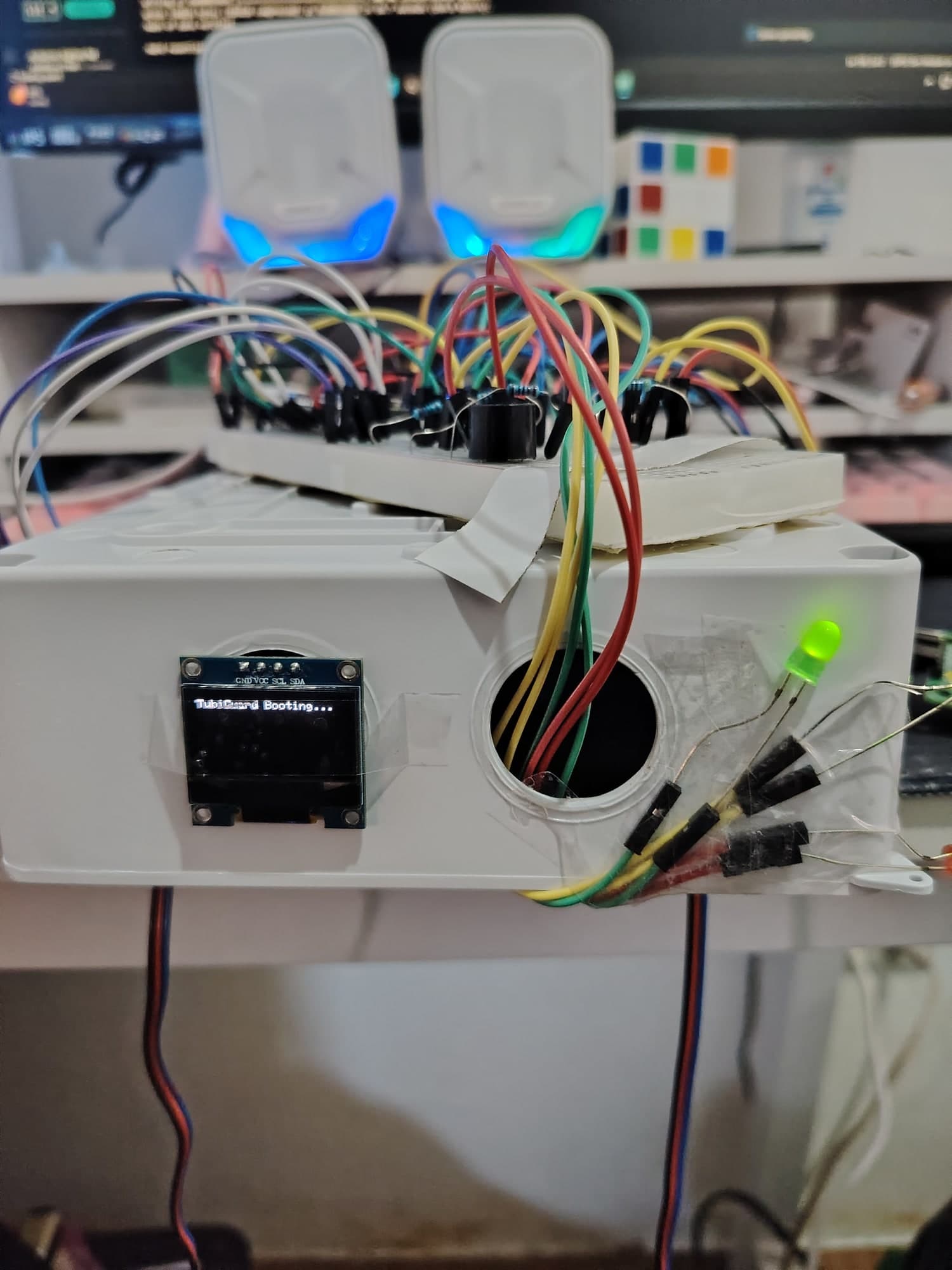

It was built from the board up — breadboard wiring, sensor conditioning boards, a microcontroller and a display — then moved into a project enclosure with the display and indicator lights mounted through the front panel.
It is a prototype. The photographs are from testing, and the values on the display are readings taken during those tests.
Built for a client who has asked to remain anonymous. No client detail is published.
What is in it
- ESP32 microcontroller

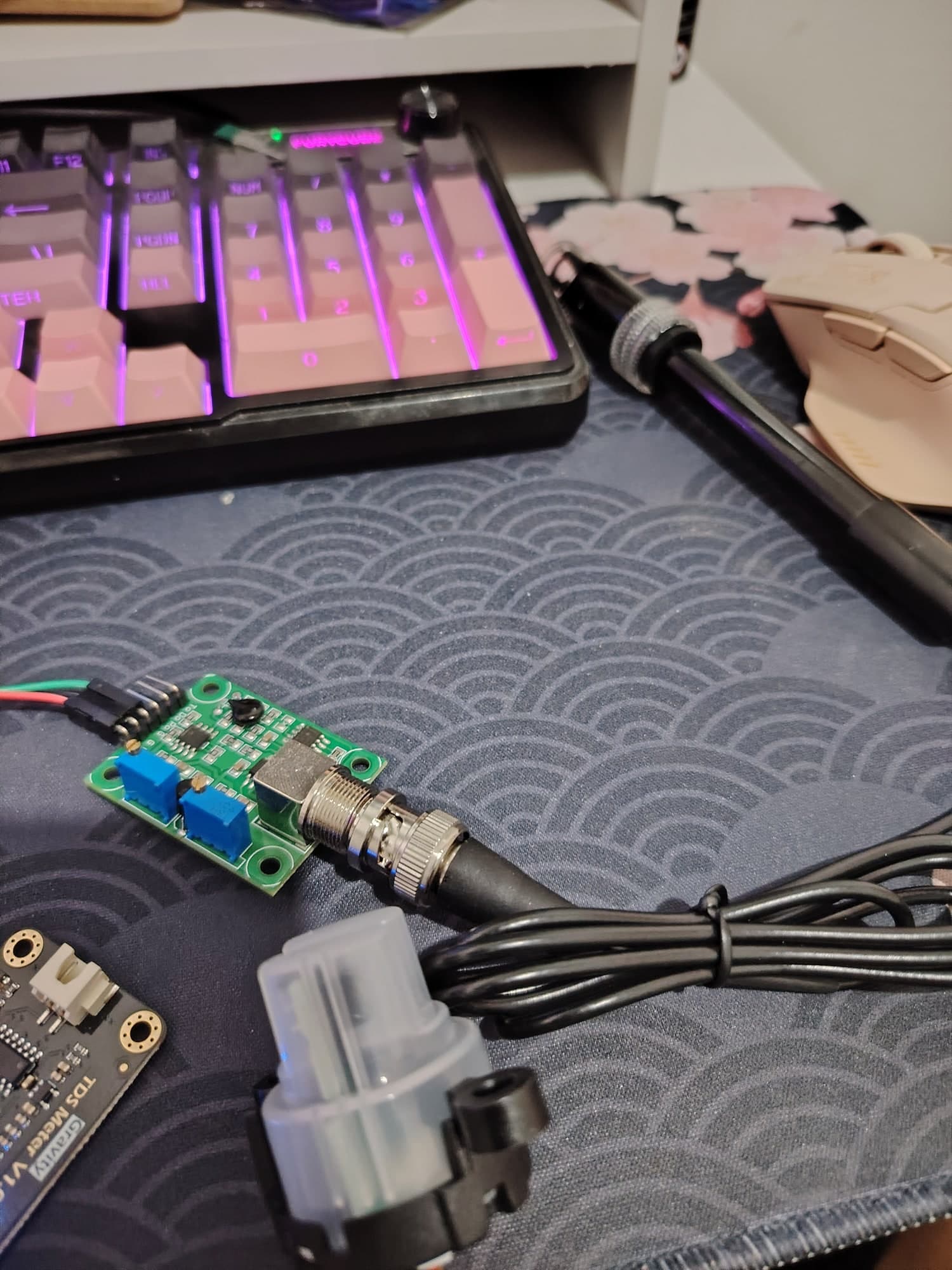

- pH probe with signal-conditioning board
- Turbidity probe
- TDS probe (Gravity TDS meter board)
- Temperature probe
- 0.96" I²C OLED display
- SAFE / WARNING / UNSAFE indicator LEDs
- Project enclosure with panel-mounted display and connector
What we did

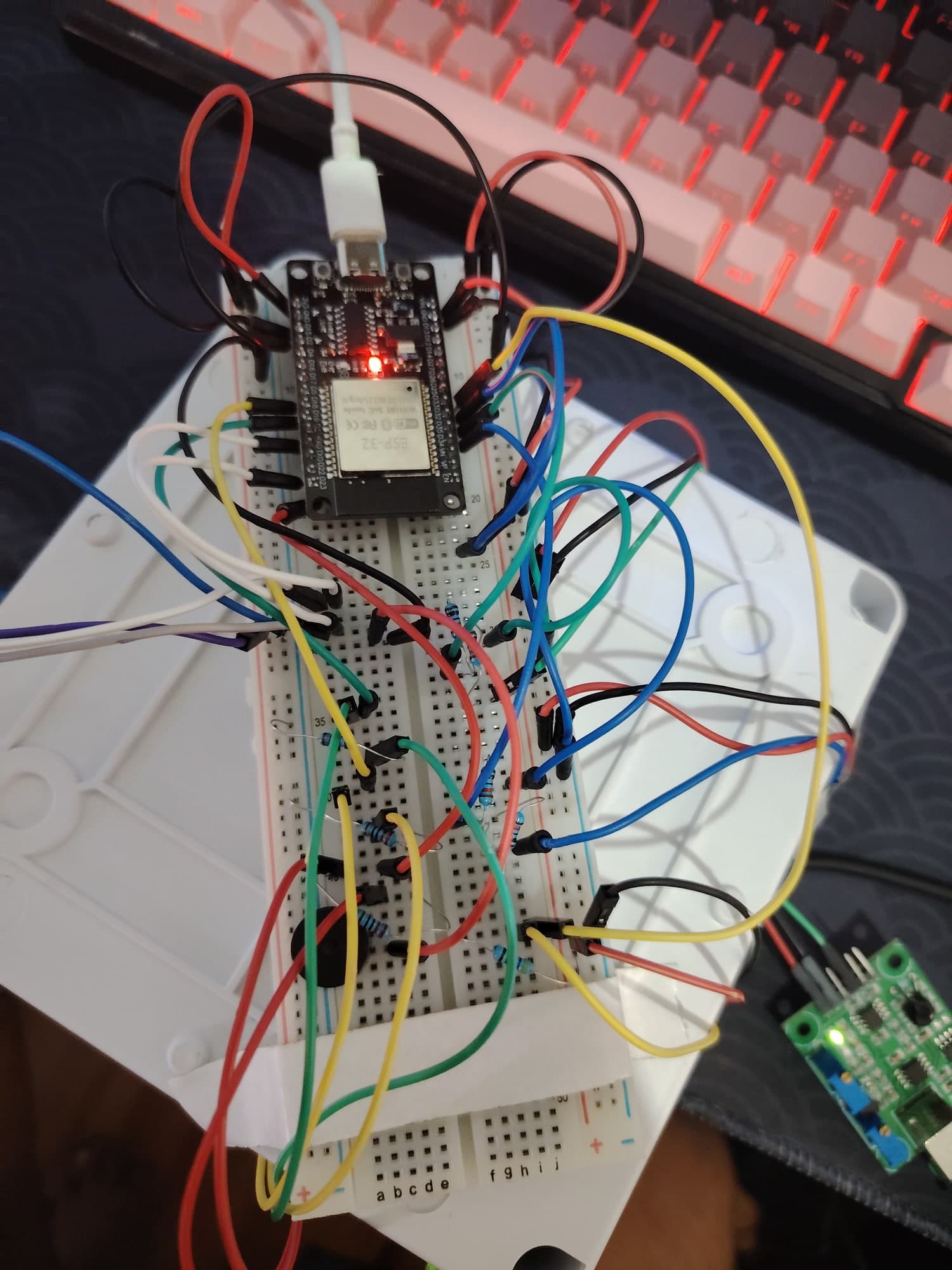

- Circuit design and breadboard prototyping
- Sensor integration across four measurement types
- On-device readout and three-state status indication
- Enclosure fit-out and panel mounting
- Bench testing with probes submerged
From the build
